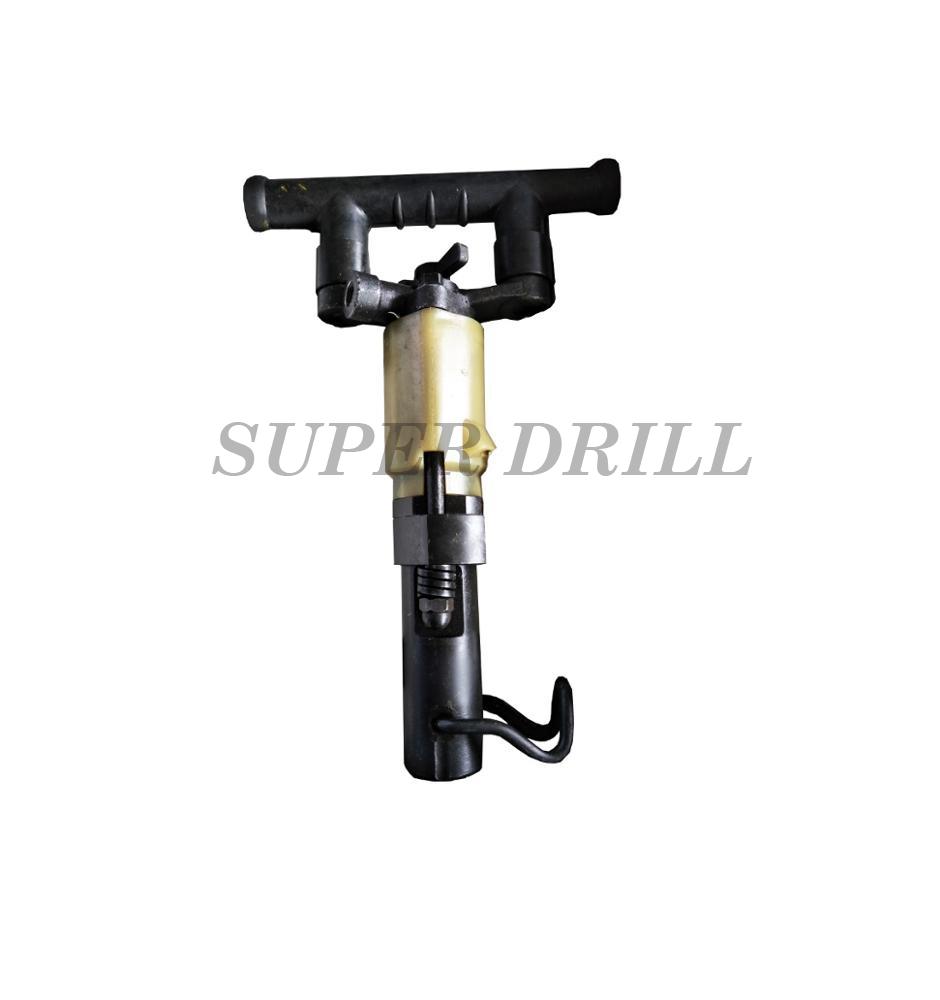

Y6 pneumatic rock drill

No.00128
Y6 PNEUMATIC ROCK DRILL Weight 6 kg Length 426 mm Air consumption ≤9.5 L/s Air Pipe Inner Diameter 13 mm Size Of Drill Shank H15x88 mm Drilling Diameter 20 mm Drilling Depth 0.5 m
Description
Y6 pneumatic rock drill

Model Y6 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting of rock, it is most suitable for drilling in marble and granite.

Y6 use small taper drill rod with taper chisel bit, diameter 17-22 mm, and use plug hole integral steel also as for stone working, stone trimming, and 2nd splitting blocks.
Product features:


Model Y6 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting of rock, it is most suitable for drilling in marble and granite.

Specification:

Y6 pneumatic rock drill
Model Y6 Y8 Y10 Y20 Y19A Y24 Y26 Y28
Weight(kg) 6 6 10 18 19 24 26 26
Air consumption (L/s) ≤9.5 <9.0 ≤9 25 43 ≤50 ≤47

length (mm) 426 428 458 605 600 604 650 661
shank (mm) 15*88 15*88 15*88 22*108 22*108 22*108 22(25)*108 22*108
Bore Dia (mm) 20 20-30 20-30 30-42 30-42 30-42 30-42 34-42
Drill depth (m) 0.5 0.5 0.5 3 5 5 5 5
Impact rate (Hz) 51 51 ≥51 34 35 30 27 ≥28
Hose connection(mm) 13



16 or19 19 19 19

Air pressure(Mpa)

0.4-0.63 0.2-0.3



0.4 0.4 0.4
