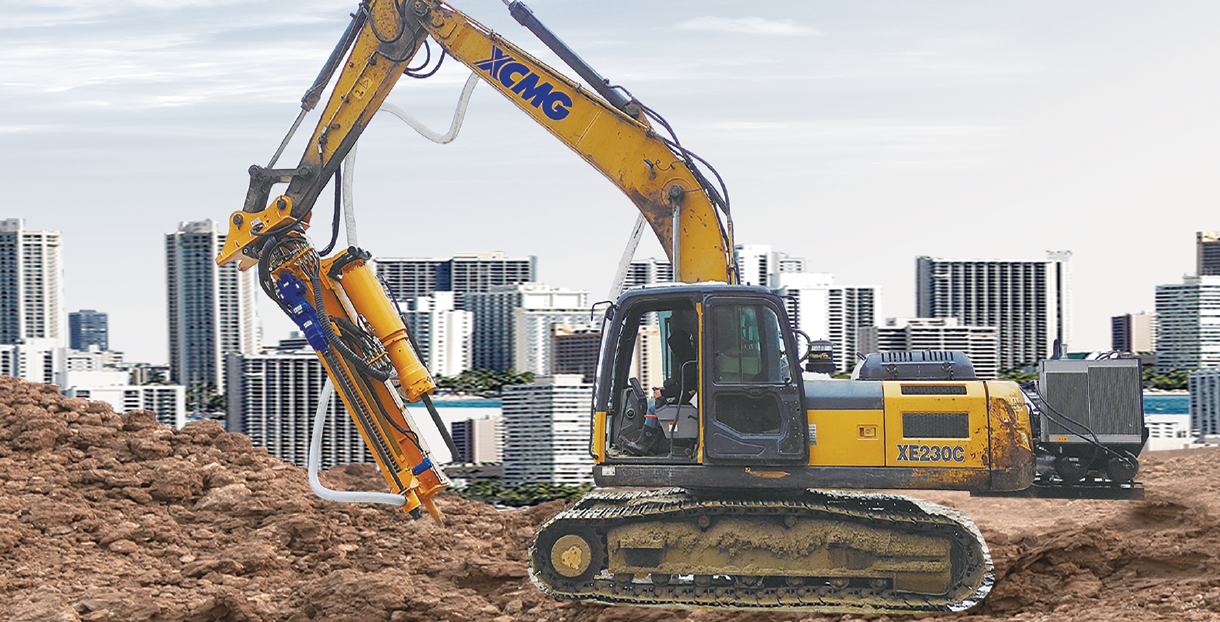

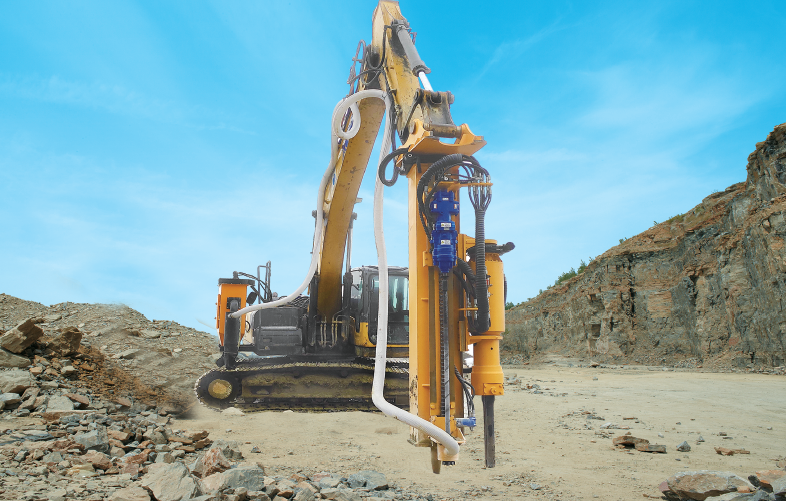

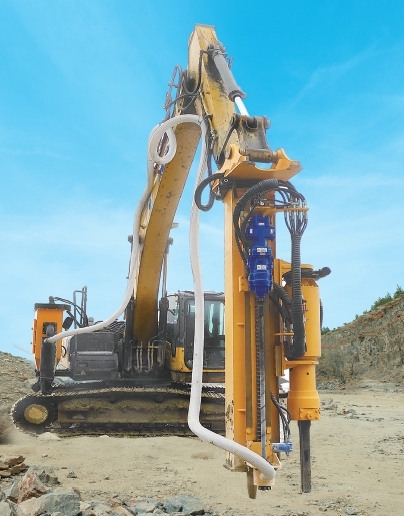

SUPERDRILL Integrated Hydraulic Rock Splitter Drilling Rig It is specially designed for rock excavation projects in mines and tunnels without the use of explosives. By utilizing advanced rock splitting technology, this system offers a safe, environmentally friendly, and highly efficient solution for complex geological conditions and confined spaces.
Integrated Drilling and Splitting: Combines drilling and rock splitting functions into one machine, offering strong adaptability and efficient performance.
High Efficiency: Equipped with a large-displacement hydraulic pump and motor, enabling strong power, fast operation, and low fuel consumption.
Non-Explosive, Safe, and Precise: Eliminates the need for explosives, ensuring safer operations and more accurate rock breaking.
Wireless Remote Control: Features wireless remote control and electro-hydraulic proportional control, making operation simpler and safer.
Ideal for Confined Work Environments: Enables quiet, vibration-free operations in environments where traditional blasting is prohibited.
| Parameter | Unit | Value |
|---|---|---|
| Dimensions (L × W × H) | mm | 4250 × 1300 × 1500 |
| Total Weight | kg | 3350 |
| Hydraulic Rock Drill | - | YHD210 / Optional |
| Borehole Diameter | mm | 115 |
| Drilling Depth | mm | 1500 |
| Drilling Speed | mm/min | 500–1200 |
| Drilling Power | kW | 18 |
| Drilling Type | - | Hydraulic |
| Drilling Pressure | Bar | 175 |
| Drilling Flow Rate | L/min | 80–100 |
| Drilling Energy | J | 300 |
| Fuel Consumption | L/min | 30–44 |
| Return Pressure | Bar | 150 |
| Torque | N·m | 830 |
| Rotation Speed | rpm | 250 |
| Max Operating Flow | L/min | 250 |
| Hydraulic Pressure | Bar | 180 |
| Rock Splitter | - | SPD320 |
| Wedge Diameter | mm | 320 |
| Splitting Pressure | Bar | ≤315 |
| Splitting Force | t | 5000 |
| Control System | - | Electro-hydraulic + Wireless |
| Dust Removal System | - | Optional |
| Air Compressor (External) | - | LGCY-5.0/8 |
| Air Displacement | m³/min | 5 |
| Air Pressure | Bar | 8 |
| Compatible Drill Rod Models | - | T45 / T51–1830 |
| Suitable Excavation Volume | t | ≥20 |
Mining operations
Urban tunnel construction
Roadway development in hard rock
Non-blasting excavation projects
Rescue operations in confined underground spaces
