Hydraulic piston Rock Splitter

Name: Hydraulic piston Rock Splitter
Brand: Hubei Superdrill Mechanical Equipment Co.,Ltd
SKU: 00117
Availability: InStock
Rating: 5 (1 reviews)

No.00117

Hydraulic piston-powered rock splitter is new type hole piston type hydraulic rock splitter, hydraulic soundless blasting, hand hold rock splitter improved, and alternative of Expansive Demolition Agent

GET A QUOTE

Add to Quote List View Quote List

Description
How to word
Application field

Piston rock splitter is a new type of rock-breaking equipment. Its design is inspired by our common hydraulic jack. Using a piston rock splitter requires a larger hole diameter than a hand-held rock splitter (typically 90mm, 110mm, 130mm, 150mm, 180mm, or over 200mm). No vibration, no noise, and no flying stones during the working process. The effect is immediate, there is no need to wait, and the work can be repeated without interruption. In many large rock-breaking construction sites, such as road construction or building foundation sites, it is difficult for a handheld wedge rock splitter to meet a large number of rock removal requirements. So using a piston rock splitter is the best way. Piston rock splitters are more powerful and efficient than handheld wedge rock splitters. It is fully capable of all kinds of large-scale rock-breaking work.

Piston Splitter

Model	Unit	SPD-90	SPD-110	SPD-130	SPD-150	SPD-180	SPD-220
Diameter	mm	φ85	φ105	φ125	φ145	φ175	φ215
Length	mm	640	720	750	780	1020	1120
Piston diameter	mm	50	60	70	80	100	110
Piston max stroke	mm	25	34	38	48	56	70
Drill hole diameter	mm	φ90	φ110	φ130	φ150	φ180	φ220
Drill hole depth	mm	≥1000	≥1000	≥1000	≥1000	≥1500	≥1500
Splitting force theoretical	ton	1580	2160	2550	3070	3680	4210
Splitting force effective	ton	≈1500	≈2000	≈2400	≈2900	≈3500	≈4100
Weight	kg	31	46	55	76	127	213

Diesel hydraulic power unit

Power	15HP/11KW
Rated Pressure	100Mpa
Peak Pressure	150Mpa
Low-pressure flow	10L/min
High-pressure flow	4.5L/min
Operation Temp	-20℃ ~ 85℃
Oil Tank Volume	100L
Diesel Tank Volume	10L
Weight	315kg
Dimensions	1100×1015×980mm

Electric hydraulic power unit

Power	7.5KW
Rated Pressure	100Mpa
Peak Pressure	150Mpa
Low-pressure flow	8L/min
High-pressure flow	3.8L/min
Operation Temp	-20℃ ~ 85℃
Oil Tank Volume	100L
Weight	185kg
Dimensions	950×830×1250mm

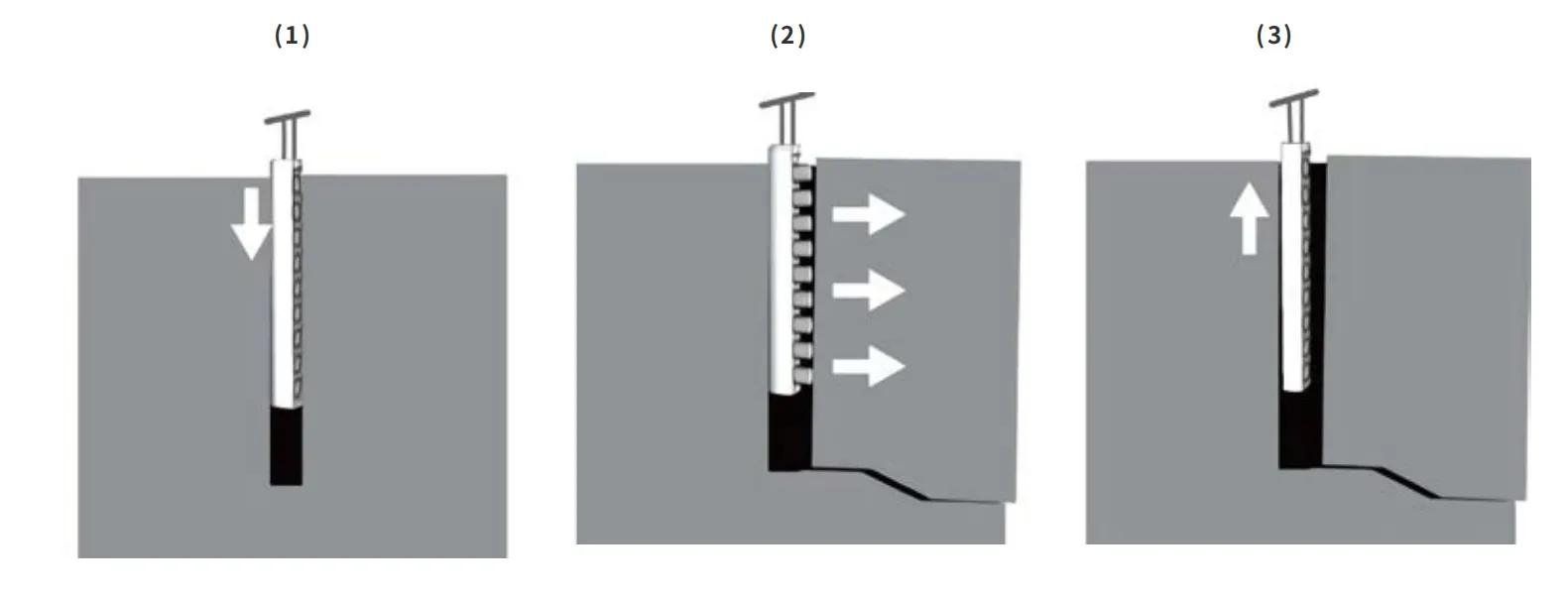

1.Drilling:
A hydraulic crawler drill can be used for drilling. The diameter of the drill hole is determined according to the type of splitter used (for example, the hole diameter of the sSPD-130 splitter is 130mm), the drill depth is 1m-1.5m, and the drill holes are arranged in a staggered arrangement.

2. Splitting:
Insert the splitter into the pre-drilled hole and adjust the splitting direction according to the free surface. When splitting, multiple splitters should be inserted into adjacent holes, and the splitting direction should be consistent to concentrate the splitting force to achieve better splitting effect and efficiency.
3. Breaking:
After splitting, the hydraulic breaker breaks the rock into small pieces. The secondary crushing can be carried out at the same time as the splitting.

The main fields of use of hydraulic plunger splitter rods:

1. The non-explosive mining of stones in medium and large stone yards can be split with splitting rods to obtain larger stones.

2. For open-pit mining of gold, silver, lead, tin, aluminum and other metal mines, use the Farun brand hydraulic plunger splitting rod to quickly split the ore body in conjunction with down-the-hole drilling, which is safe and vibration-free.

3. When excavating subway tunnels under urban buildings and encountering huge rocks that need to be split and Zhay*o cannot be used, splitting rods can be used to effectively split the rocks.

4. The splitting and removal of large rocks in the rock mining project can replace the wind pick, the breaking hammer, and the expansion agent to excavate the mountain without
